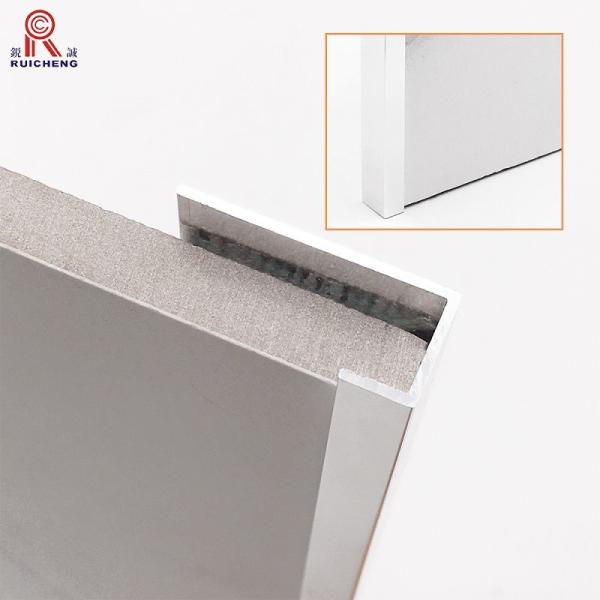

Square End Cap Aluminium Panel Trim Wall Tile Corner Protection UV Board Decoration
Application
Surface Finish:
• Natural anodised finish
• Mill (untreated) finish
Please contact us if you require a surface finish that is not shown.
N.B. Jig or clamp marks on anodised items can be unsightly, and are normally positioned up to 50mm in from each end. When aesthetic considerations apply, these markings should be cut away.
Feature
Wet Wall Trim, Shower Wall Trim, Aluminium, Bright Silver, End Cap Trim, Internal Corner Shower Trim, External Corner, H Join, Angle Trim, Extruded Angle, Wet Room
Use
Installation:
Step 1. Carefully unpack the profiles and ensure they are in good condition & fit for purpose.
Step 2. If the items have been anodised, any unsightly jig marks should be cut away from the extreme ends, before fixing commences.
Step 3. Select suitable quality fixings that are appropriate for use with the intended fixing surface.
Step 4. Carefully drill csk. holes through the v-shaped groove, located in the extended fixing flanges of the wall board profiles.
Step 5. After fixing into position, check that the profiles are safely secured to the supporting background surface.
Step 6. To ensure stability, make sure the wall boards are fully inserted into the retaining channels of the profiles.
Cleaning and Maintenance: All that is normally required to maintain the appearance and prevent the build-up of surface contaminants on the visible surfaces is an occasional wipe over with a soft, dry cloth. Any liquids being used for cleaning purposes must be applied in small amounts to a soft cloth. Grease or oil deposits can be removed with organic solvent such as white spirit, followed by wiping over with a mild diluted detergent and rinsing with cold clean water. Dry off with a soft cloth. It is important that abrasive cleaners or scourers are not used on the aluminium surface, as otherwise, damage may occur.
Specification
| Product Name | Aluminium Panel Trim |
| Material | Metal, Aluminium |
| Color | Silver, Golden, Rose Gold, Black Titanium, Red Copper, Champagne, Bronze, Sapphire, Customized color |
| Surface treatment | 8K mirror, Hairline ,Shiny, Matt, Etching, Embossing,Anti-fingerprint , Or customized |
| Type | U channel, L shape, T shape , customized shape |
| Thickness | 0.4mm~3.00mm, or customized |
| Length | 2.44/3.05/4m per piece, or customized |
| Application | 1.Wall corner protection , anti-collision 2.Protecting the tile edge
3.Floor ceramic tile edge decoration
4.Anti-slipping for stair nosing
5.Floor dividing line , carpet/floor transition |
| MOQ | 50 M |
| Packing | 1.Each with plastic protective film and plastic shrink film for each bundle with customized label+ Plywood case/box/carton,waterproof Kraft paper for each box , customized request available. 2. 20 pieces per bundle, 80-200 per carton
/box for stainless steel packing. |
| Payment terms | 30% deposit, 70% balance before shipment or against B/L copy. |
| Shipment terms | EXW, FOB , CIF |
Product Tags:
|
|
Antifingerprint Aluminium Panel Trim , 3m Aluminium Square Edge Tile Trim Images
|
